| P64Ti | P110Ti A350LF2 | P110Ti A387 Gr.22 | P215Ti | |
|---|---|---|---|---|
| Max. operating pressure | 64 bar | 110 bar | 110 bar | 215 bar |
| Max. differential pressure | 64 bar | 110 bar | 110 bar | 215 bar |
| Max. Temperature | 525 °C | 400 °C | 525 °C | 550 °C |
Socket Weld

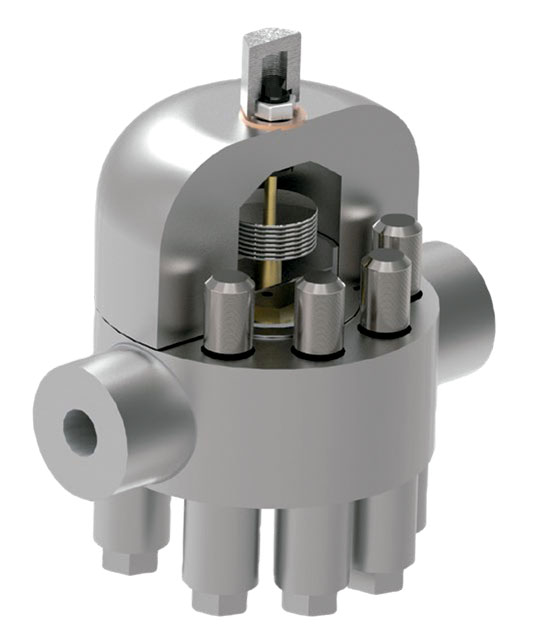

Universal Connection (Steam trap)
Other connections upon request.
| Body | Carbon steel ASTM A105 |
| Bonnet | Carbon steel ASTM A105 |
| Hand wheel | Carbon steel ASTM A216 WCB |
| Integral piston | Stainless steel A276 TP 410 |
| Latern bush | Stainless steel A276 TP 410 |
